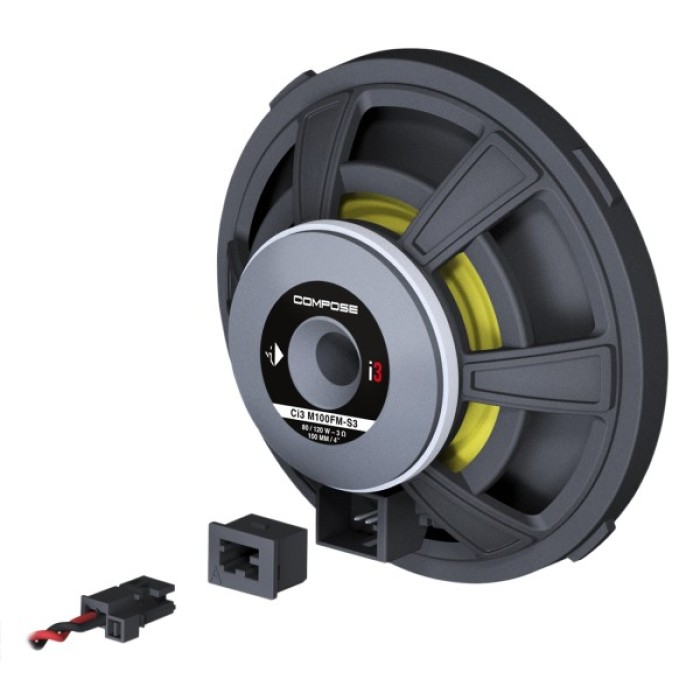

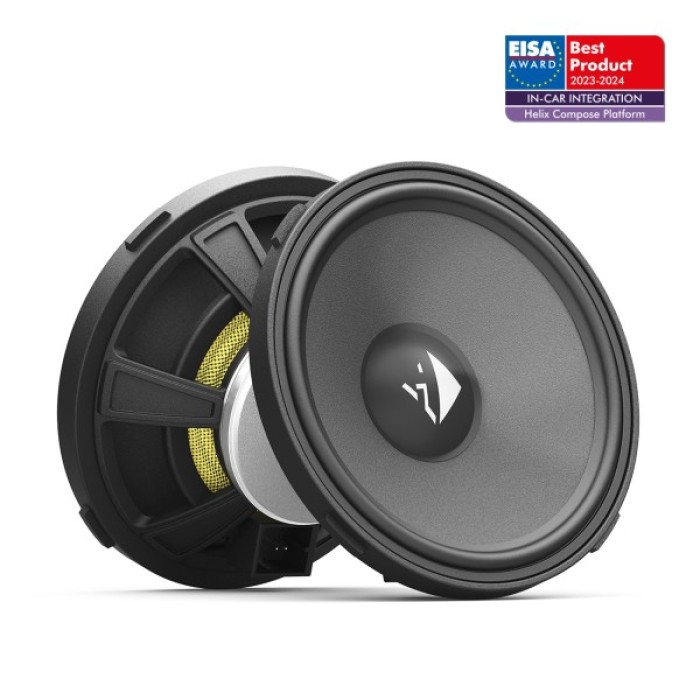

Акустика HELIX Ci3 M100FM-S3
Новинка
- Power handling RMS / max. P
- 80 / 120 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Frequency response 120 Hz - 6,000 Hz
- Resonance frequency Fs 146 Hz
- Mechanical Q factor Qms 4.49
- Electrical Q factor Qes 1.02
- Total Q factor Qts 0.83
- Compliance Cms 280 µm/N
- Equivalent air volume Vas 1.1 L
- Force factor B*I 3.4 Tm
- Sensitivity SPL 91 dB @ 2.83 V / 1m
- 87 dB @ 1W / 1m
- Cone area Sd 53 cm²
- Moving mass Mms 4.3 g
- Cone material Paper with Cenosphere coating
- Mechanical resistance Rms 0.87 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height 4.8 mm
- Max. linear excursion Xmax +/- 2.0 mm
- Outer diameter ø 98 mm / 3.86"

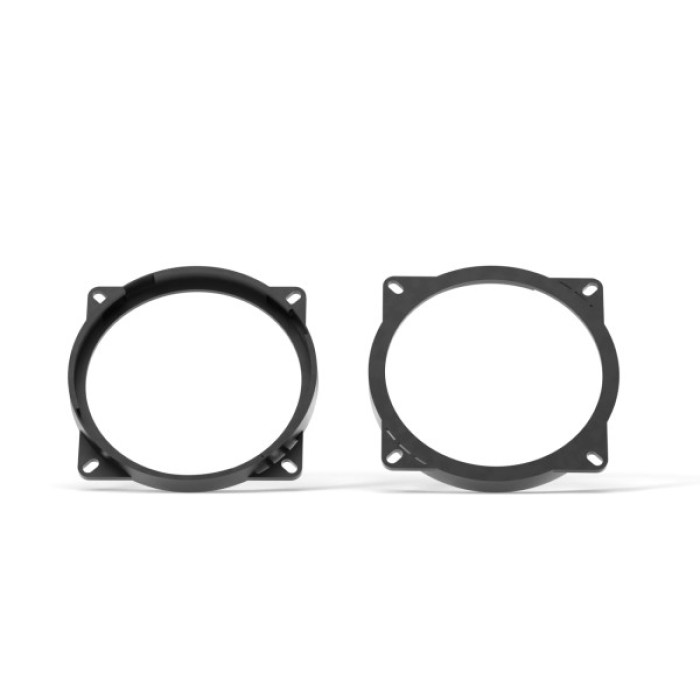

- Outer diameter with universal mounting ring ø 104,5 mm / 4.11"
- Installation diameter ø 89 mm / 3.50"
- Installation depth 30 mm / 1.18"
- Features FlexConnect terminal,
- powerful push-pull neodymium magnet system,
- FlexMount100
Виробник
HELIX
Серія
Compose i3
Типорозмір
4" (10cm)
