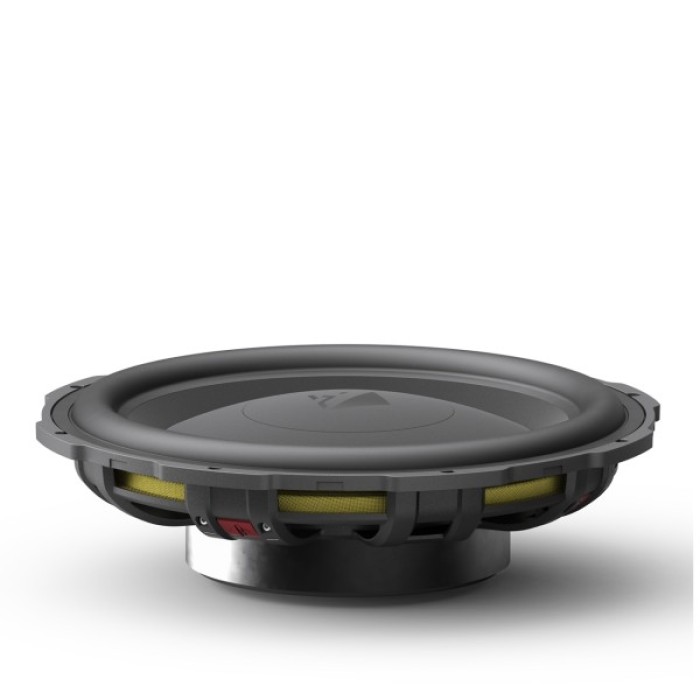

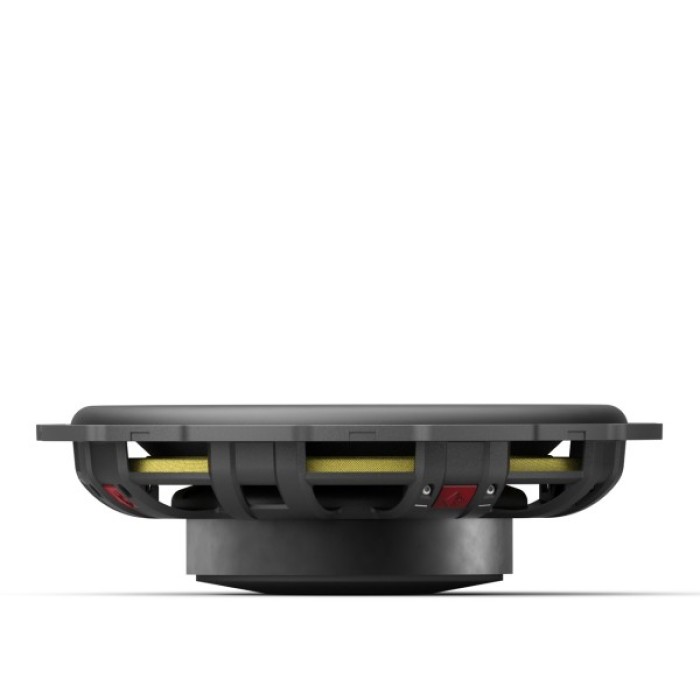

Акустика HELIX Ci5 S200FM-D2
Новинка
- Power handling RMS / Max. P
- 200 / 400 Watts
- Impedance Z 2 x 2 Ω
- DC resistance Re 3.6 Ω
- Frequency response 25 Hz - 500 Hz
- Resonance frequency Fs 55 Hz
- Mechanical Q factor Qms 8.31
- Electrical Q factor Qes 0.88
- Total Q factor Qts 0.80
- Compliance Cms 256 µm/N
- Equivalent air volume Vas 13.5 L
- Force factor B*I 6.7 Tm
- Sensitivity SPL 90 dB @ 2.83 V / 1m
- 87 dB @ 1W / 1m
- Cone area Sd 194 cm²
- Moving mass Mms 32 g
- Cone material Injected polypropylene
- Mechanical resistance Rms 1.39 kg/s
- Voice coil diameter ø 38 mm
- Voice coil winding height 20 mm
- Max. linear excursion Xmax +/- 7.5 mm
- Outer diameter ø 195 mm / 7.68"
- Installation diameter ø 173.5 mm / 6.83"
- Installation depth 47.0 mm / 1.85"
- Features FlexMount200
Виробник
HELIX
Серія
Compose i5
Типорозмір
8" (20cm)
