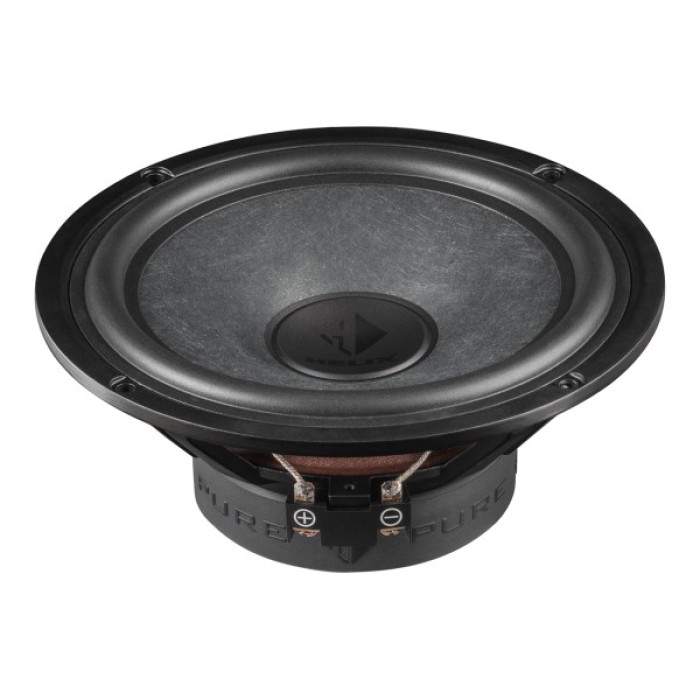

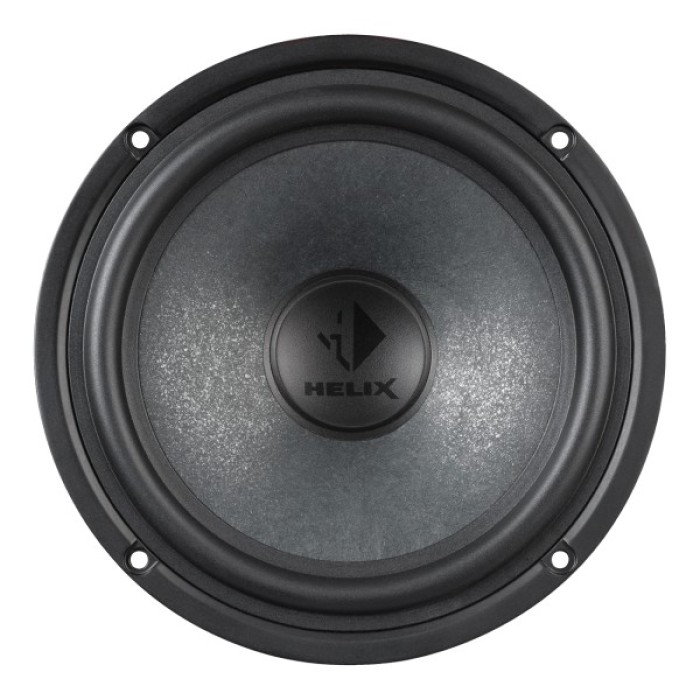

Акустика HELIX PR W165
Новинка
- Power handling RMS / Max. P
- 100 / 200 Watts
- Impedance Z 4 Ω
- DC resistance Re 3.1 Ω
- Frequency response 40 Hz - 4,000 Hz
- Resonance frequency Fs 57 Hz
- Mechanical Q factor Qms 5.35
- Electrical Q factor Qes 0.63
- Total Q factor Qts 0.57
- Compliance Cms 440 µm/N
- Equivalent air volume Vas 10.8 L
- Force factor B*I 6.1 Tm
- Sensitivity SPL 91 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 133 cm²
- Moving mass Mms 17.9 g
- Cone material Mica-Paper composite cone
- Mechanical resistance Rms 1.19 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height 12 mm
- Max. linear excursion Xmax +/- 3 mm
- Outer diameter ø 166 mm / 6.54"
- Installation diameter ø 141 mm / 5.55"
- Installation depth 66.5 mm / 2.62"
Виробник
HELIX
Серія
PURE R
Типорозмір
6-6.5" (16-17cm)
