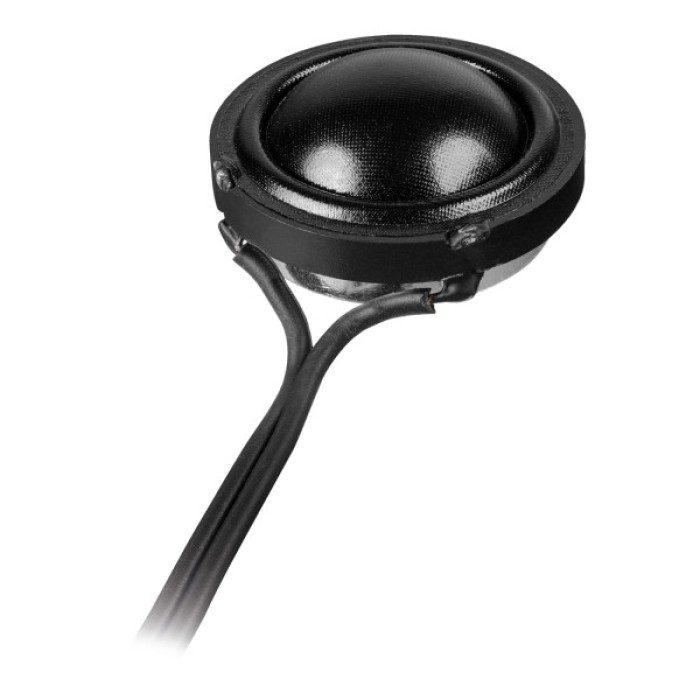

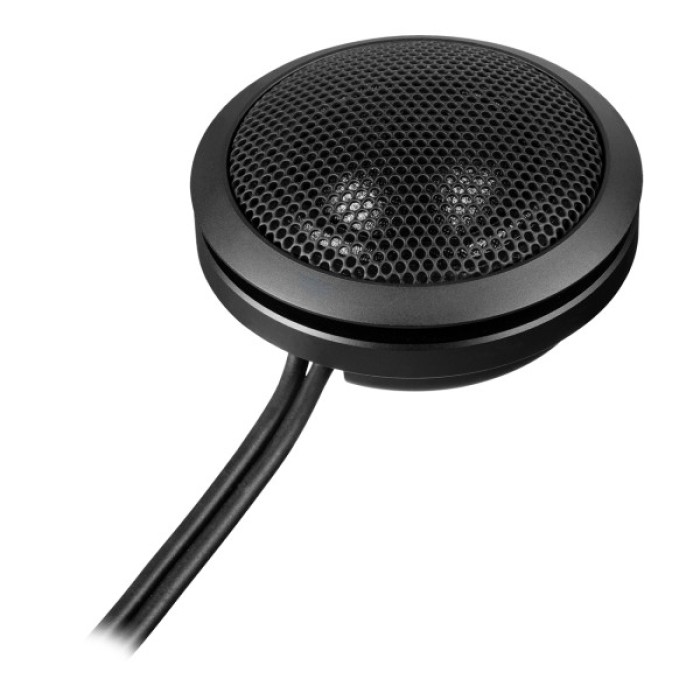

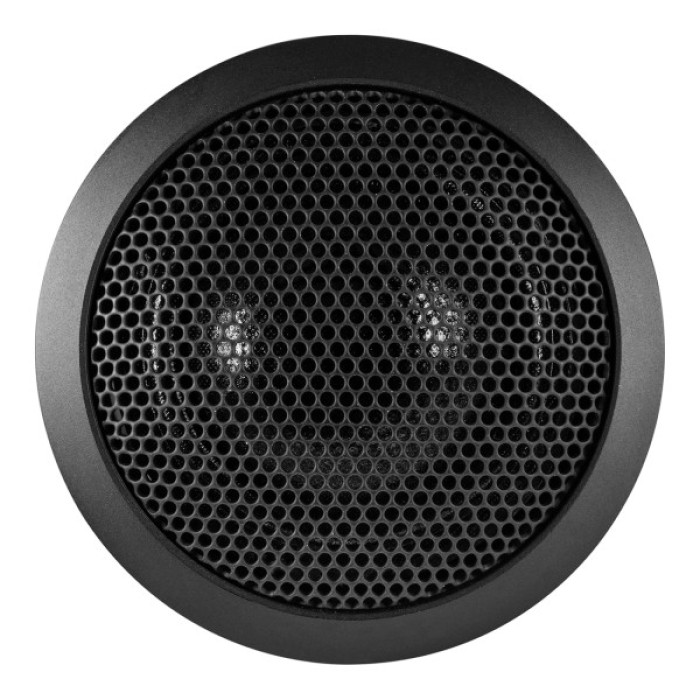

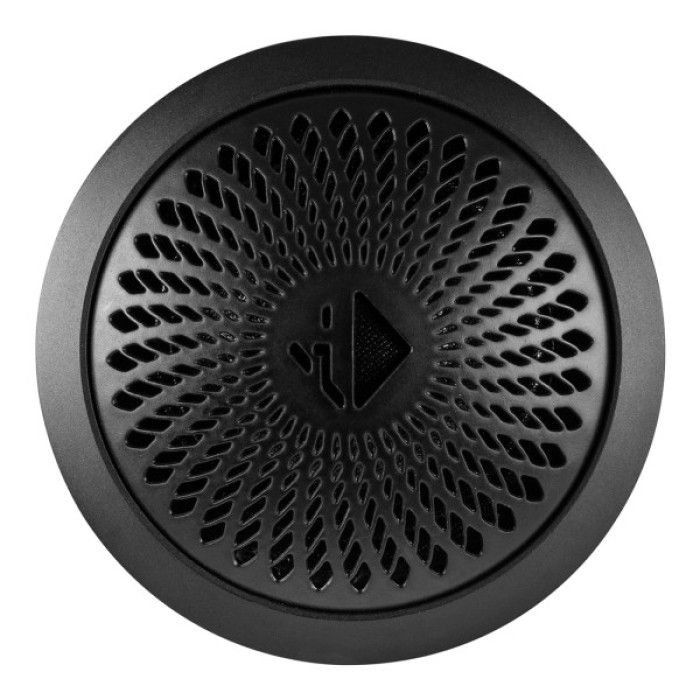

Акустика HELIX PR T25-S
Новинка
- Impedance Z 4 Ω
- DC resistance Re 3.4 Ω
- Frequency response 2,500 Hz - 25,000 Hz
- Resonance frequency Fs 1,400 Hz
- Sensitivity
- SPL
- 92 dB @ 2,83V / 1m
- 89 dB @ 1W / 1m
- Voice coil diameter ø 25 mm
- Cone area Sd 4.9 cm²
- Moving mass Mms 0.3 g
- Cone material Coated silk dome
- Outer diameter
- (more data see data sheet) ø 37.7 mm / 1.48"
- Installation diameter
- (more data see data sheet) ø 37.7 mm / 1.48"
- Installation depth
- (more data see data sheet) 10.6 mm / 0.42"
- Recommended crossover frequencies for the highpass
- Slope Minimum crossover frequency
- 6 dB/Octave 4,000 Hz
- 12 dB/Octave > 3,000 Hz
- 24 dB/Octave > 2,500 Hz
Виробник
HELIX
Серія
PURE R
Типорозмір
0.5-3.5" (0.1-9cm)
