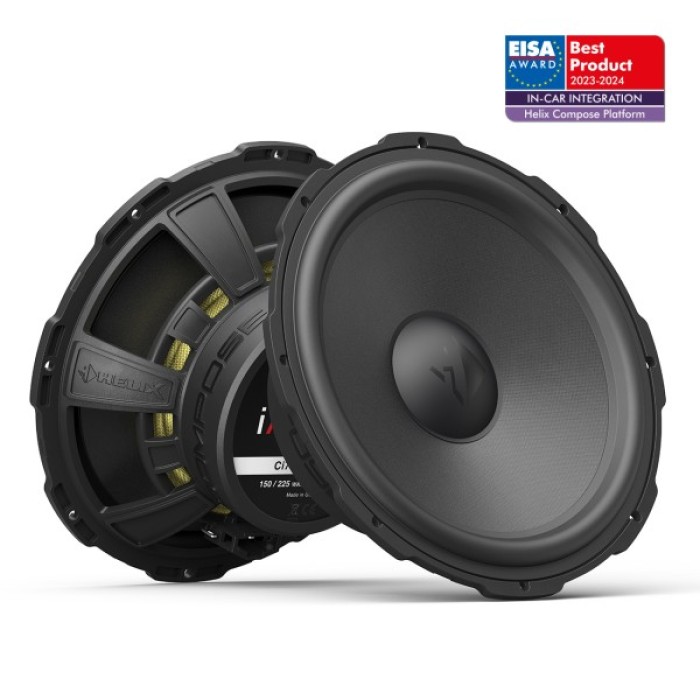

Акустика HELIX Ci7 W200FM-S3
Новинка
- Power handling RMS / Max. P
- 150 / 225 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Frequency response 35 Hz - 2,500 Hz
- Resonance frequency Fs 52 Hz
- Mechanical Q factor Qms 6.04
- Electrical Q factor Qes 0.78
- Total Q factor Qts 0.69
- Compliance Cms 370 µm/N
- Equivalent air volume Vas 20.8 L
- Force factor B*I 5.6 Tm
- Sensitivity SPL 92 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 201 cm²
- Moving mass Mms 25.6 g
- Cone material Ultra high damping (UHD) crafted paper cone
- Mechanical resistance Rms 1.40 kg/s
- Voice coil diameter ø 37 mm
- Voice coil winding height 13.8 mm
- Max. linear excursion Xmax +/- 3.9 mm
- Outer diameter ø 195 mm / 7.68"
- Outer diameter with universal mounting ring ø 208.9 mm / 8.22"
- Installation diameter ø 173.5 mm / 6.83"
- Installation depth 65.8 mm / 2.59"
- Features ProConnect terminal,
- FlexMount200
- grille
Виробник
HELIX
Серія
Compose i7
Типорозмір
8" (20cm)
