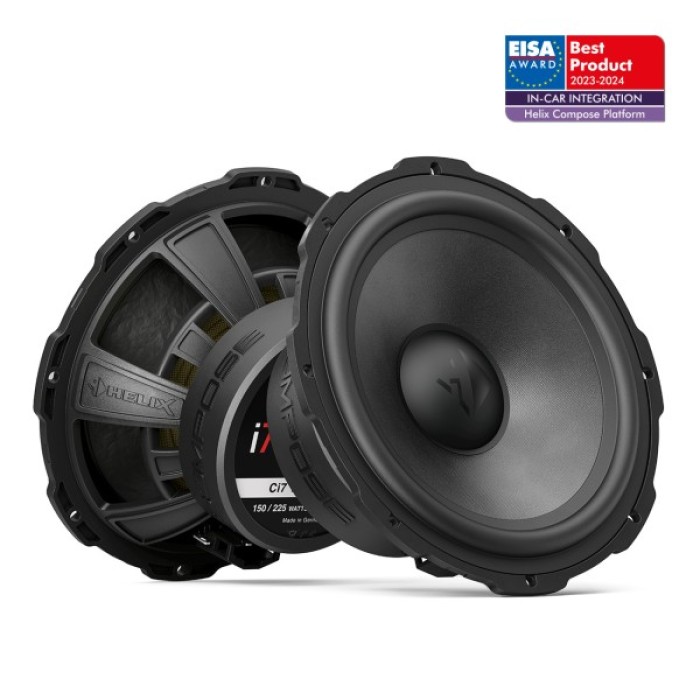

Акустика HELIX Ci7 W165FM-S3
Новинка
- Power handling RMS / Max. P
- 150 / 225 Watts
- Impedance Z 3 Ω
- DC resistance Re 2.9 Ω
- Frequency response 50 Hz - 3,500 Hz
- Resonance frequency Fs 60 Hz
- Mechanical Q factor Qms 3.00
- Electrical Q factor Qes 0.68
- Total Q factor Qts 0.55
- Compliance Cms 480 µm/N
- Equivalent air volume Vas 11.6 L
- Force factor B*I 4.8 Tm
- Sensitivity SPL 92 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 131 cm²
- Moving mass Mms 14.8 g
- Cone material Ultra high damping (UHD) crafted paper cone
- Mechanical resistance Rms 1.83 kg/s
- Voice coil diameter ø 37 mm
- Voice coil winding height 13.4 mm
- Max. linear excursion Xmax +/- 3.7 mm
- Outer diameter ø 165 mm / 6.5"
- Installation diameter ø 142 mm / 5.59"
- Installation depth 65.8 mm / 2.59"
- Features ProConnect terminal,
- FlexMount165
Виробник
HELIX
Серія
Compose i7
Типорозмір
6-6.5" (16-17cm)
