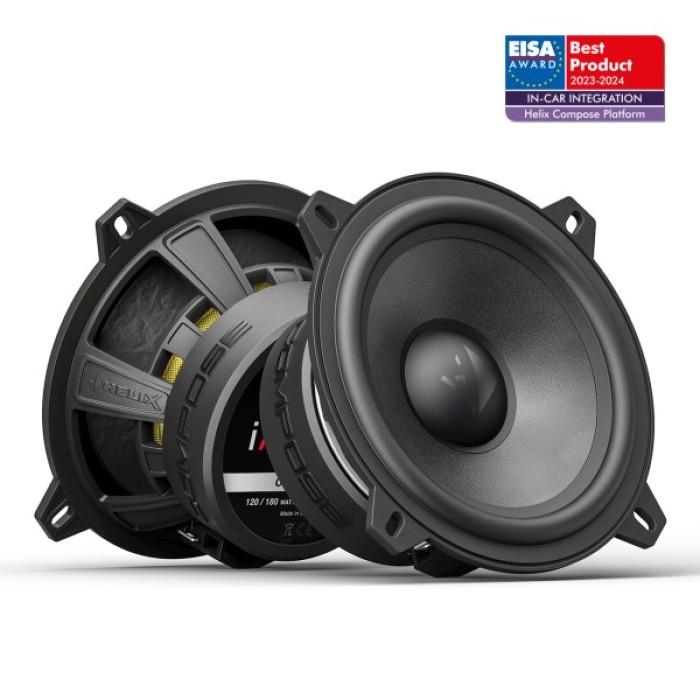

Акустика HELIX Ci7 W130-S3
Новинка
- Power handling RMS / Max.
- P 120 / 180 Watts
- Impedance Z 3 Ω
- DC resistance Re 2.9 Ω
- Frequency response 70 Hz - 4,000 Hz
- Resonance frequency Fs 73 Hz
- Mechanical Q factor Qms 2.38
- Electrical Q factor Qes 0.50
- Total Q factor Qts 0.41
- Compliance Cms 420 µm/N
- Equivalent air volume Vas 4.3 L
- Force factor B*I 5.5 Tm
- Sensitivity SPL 92 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 85 cm²
- Moving mass Mms 11.1 g
- Cone material Ultra high damping (UHD) crafted paper cone
- Mechanical resistance Rms 2.15 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height 12.8 mm
- Max. linear excursion Xmax +/- 3.4 mm
- Outer diameter ø 130 mm / 5.12"
- Installation diameter ø 116.5 mm / 4.59"
- Installation depth 58.5 mm / 2.31"
- Features ProConnect terminal
Виробник
HELIX
Серія
Compose i7
Типорозмір
5-5.5" (13-14cm)
Нещодавно переглянуті
Новинка
Немає в наявності
780грн.
