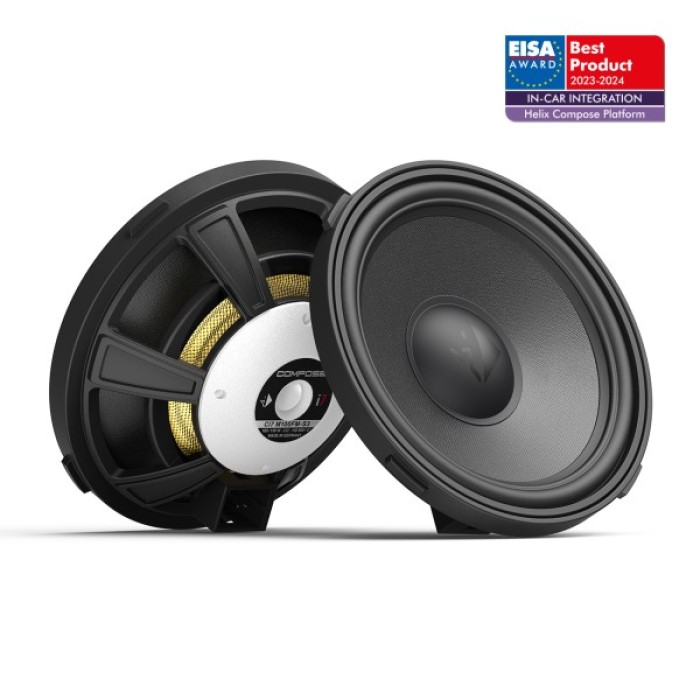

Акустика HELIX Ci7 M100FM-S3
Новинка
- Power handling RMS / Max. P
- 100 / 150 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Frequency response 110 Hz - 7,000 Hz
- Resonance frequency Fs 85 Hz
- Mechanical Q factor Qms 4.58
- Electrical Q factor Qes 0.52
- Total Q factor Qts 0.47
- Compliance Cms 590 µm/N
- Equivalent air volume Vas 2.5 L
- Force factor B*I 4.3 Tm
- Sensitivity SPL 91 dB @ 2.83 V / 1m
- 87 dB @ 1W / 1m
- Cone area Sd 55 cm²
- Moving mass Mms 5.9 g
- Cone material Ultra high damping (UHD) crafted paper cone
- Mechanical resistance Rms 0.69 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height 5.5 mm
- Max. linear excursion Xmax +/- 1.3 mm
- Outer diameter ø 98 mm / 3.86"

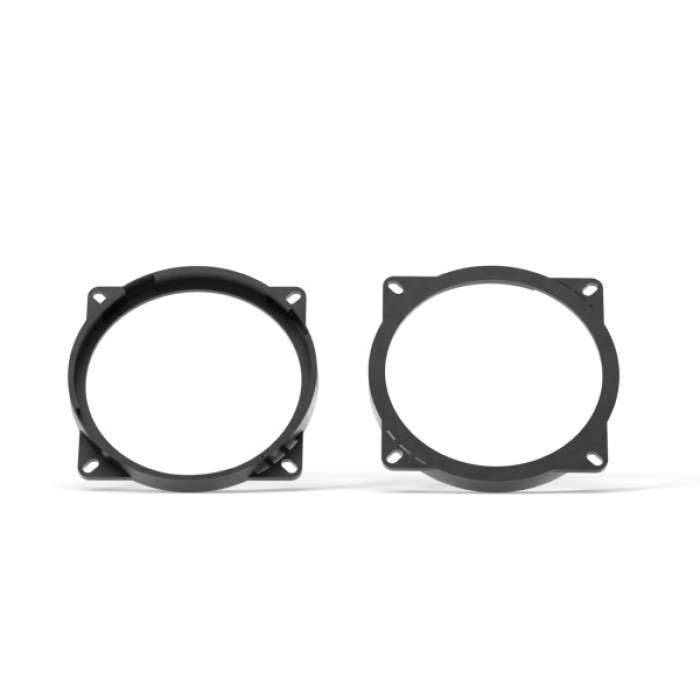

- Outer diameter with universal mounting ring ø 104.5 mm / 4.11"
- Installation diameter ø 89 mm / 3.50"
- Installation depth 26.9 mm / 1.06"
- Features FlexConnect terminal,
- powerful push-pull neodymium magnet system,
- FlexMount100
Виробник
HELIX
Серія
Compose i7
Типорозмір
4" (10cm)
