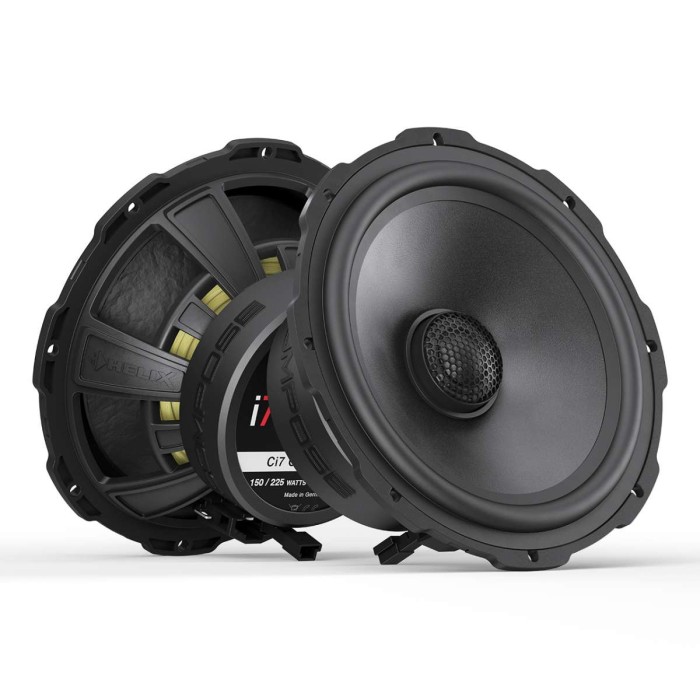

Акустика HELIX Ci7 C165.2FM-S3
Новинка
- Power handling RMS / Max. P 150 / 225 Watts
- Frequency response 50 Hz - 30,000 Hz
- Impedance Z 3 Ω
- Sensitivity SPL 92 dB @ 2.83V / 1m
- 88 dB @ 1W / 1m
- Outer diameter ø 165.0 mm / 6.50”
- Installation diameter ø 142.0 mm / 5.59”
- Installation depth 65.8 mm / 2.59”
- Midbass
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Resonance frequency Fs 59 Hz
- Mechanical Q factor Qms 3.99
- Electrical Q factor Qes 0.64
- Total Q factor Qts 0.55
- Compliance Cms 572 μm/N
- Equivalent air volume Vas 13.3 L
- Force factor B*l 4.7 Tm
- Cone area Sd 131 cm2
- Moving mass Mms 13.0 g
- Mechanical resistance Rms 1.21 kg/s
- Voice coil diameter ø 37 mm
- Voice coil winding height 13.4 mm
- Max. linear excursion Xmax +/- 3.7 mm
Виробник
HELIX
Серія
Compose i7
Типорозмір
6-6.5" (16-17cm)
