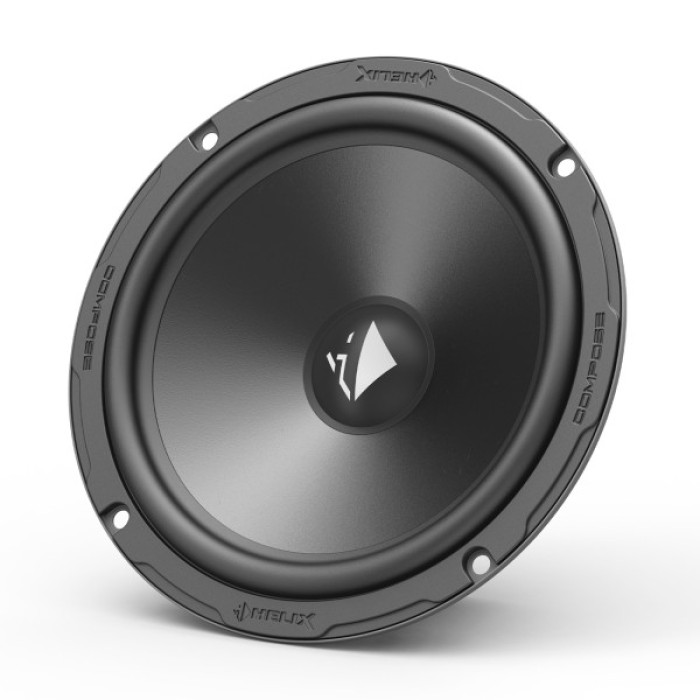

Акустика HELIX CB W165-S3
Новинка
- Power handling RMS / Max. P
- 80 / 120 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Frequency response 60 Hz - 3,500 Hz
- Resonance frequency Fs 62 Hz
- Mechanical Q factor Qms 4.50
- Electrical Q factor Qes 0.90
- Total Q factor Qts 0.75
- Compliance Cms 520 µm/N
- Equivalent air volume Vas 14.5 L
- Force factor B*I 4.1 Tm
- Sensitivity SPL 92 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 141 cm²
- Moving mass Mms 13.2 g
- Cone material Injected polypropylene cone
- Mechanical resistance Rms 1.10 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height 8.9 mm
- Max. linear excursion Xmax +/- 2.5 mm
- Outer diameter ø 166 mm / 6.54"
- Installation diameter ø 143 mm / 5.63"
- Installation depth 61.4 mm / 2.42"
Виробник
HELIX
Серія
Compose BASIC
Типорозмір
6-6.5" (16-17cm)
